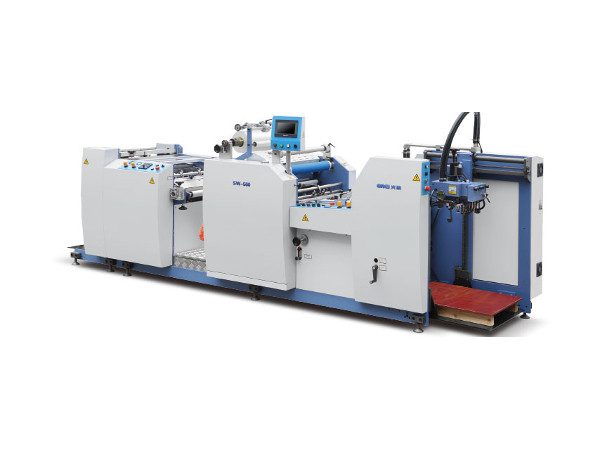

Automatic roll laminator with electromagnetic heating SW 560
Request a quote
"*" indicates required fields
Description
Configuration
- InstantEN – fast electromagnetic heater that shortens the roller heating time to 90 seconds with precise temperature control of +_1 C
- The laminating paper loading plate can be lowered to floor level, making it easier to load paper.
- Paper suction system guarantees stable and smooth paper feeding into the laminator for lamination
- Larger chrome roller equipped with the latest electromagnet heating technology, which ensures high quality lamination.
- The structural design of the separation system makes operation and maintenance easy.
- New design and larger automatic paper feeder with double layer of paper tapping

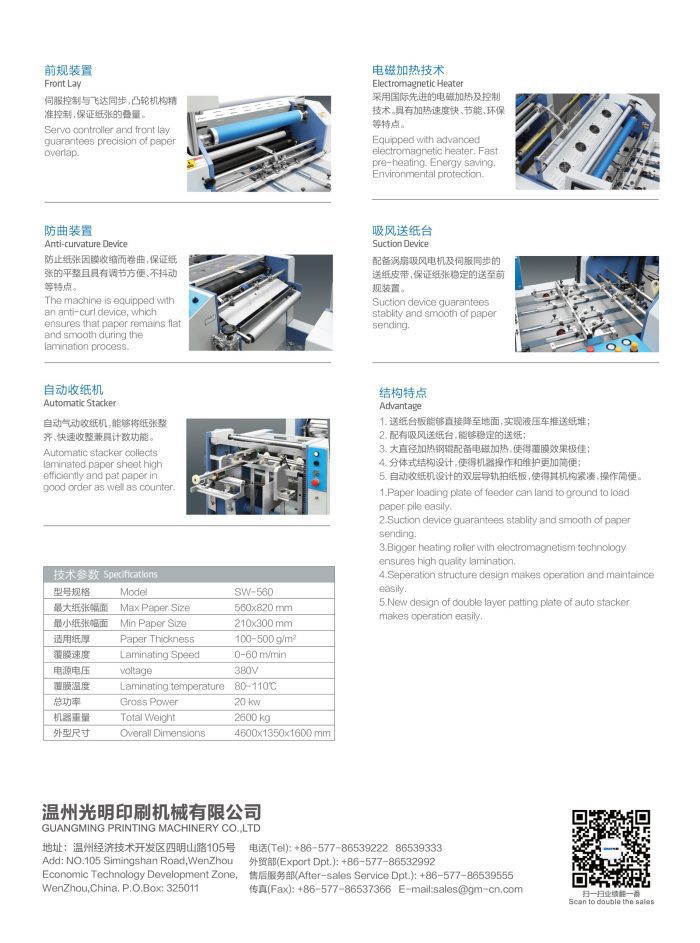

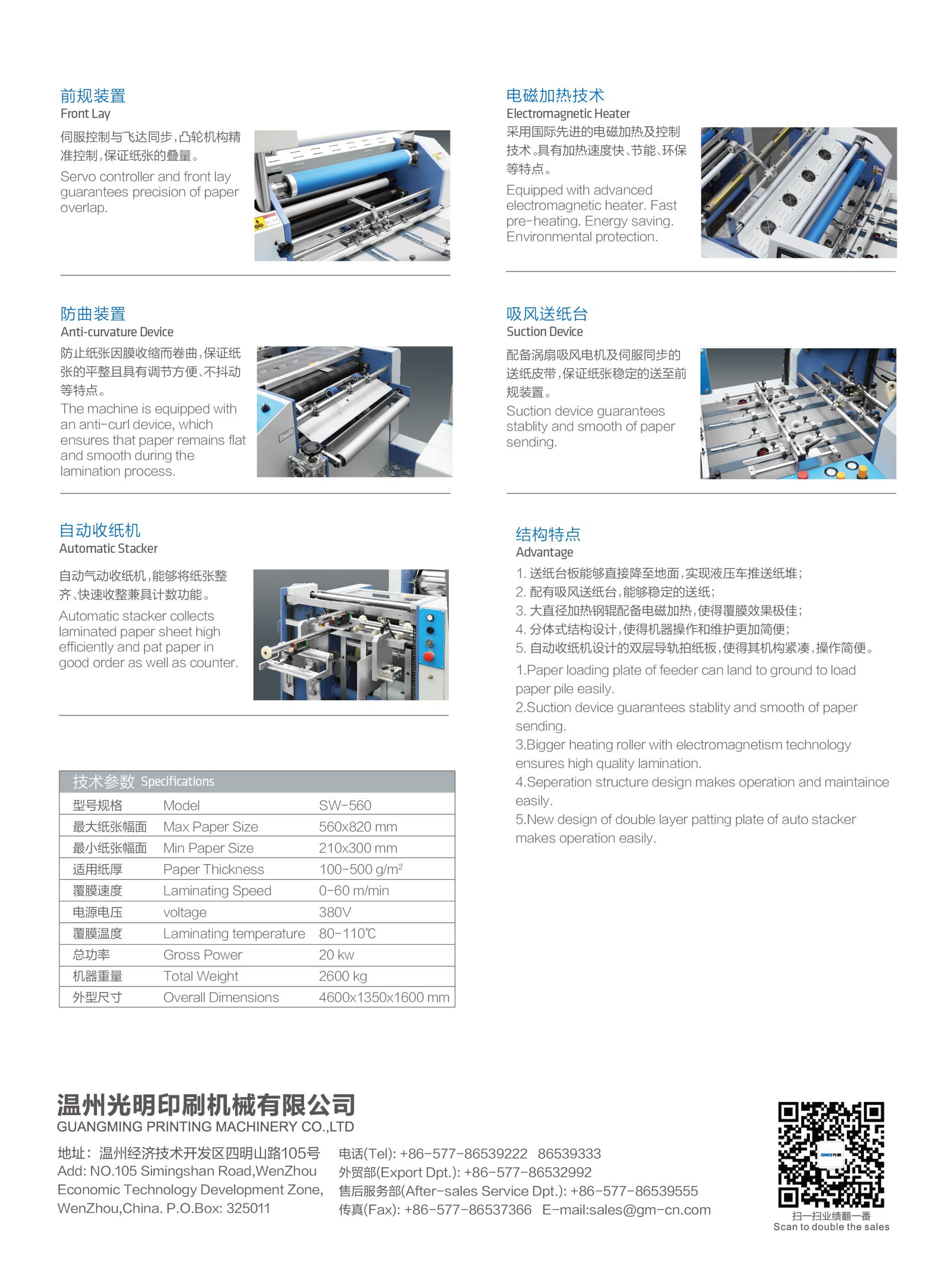

Technical characteristics:
| model | SW-560 |
| max. paper width | 560 x 820 mm |
| min. paper width | 210 x 300 mm |
| max. laminating speed | 0- 60 m/min |
| max. paper thickness | 105 – 500 g/m2 |
| lamination temperature | 80 – 110 C |
| power | 20 KW |
| power supply | 3 x 380 V, 50 HZ |
| weight | 2600 kg |
| dimensions | 4600 х 1350 х 1600 mm |
