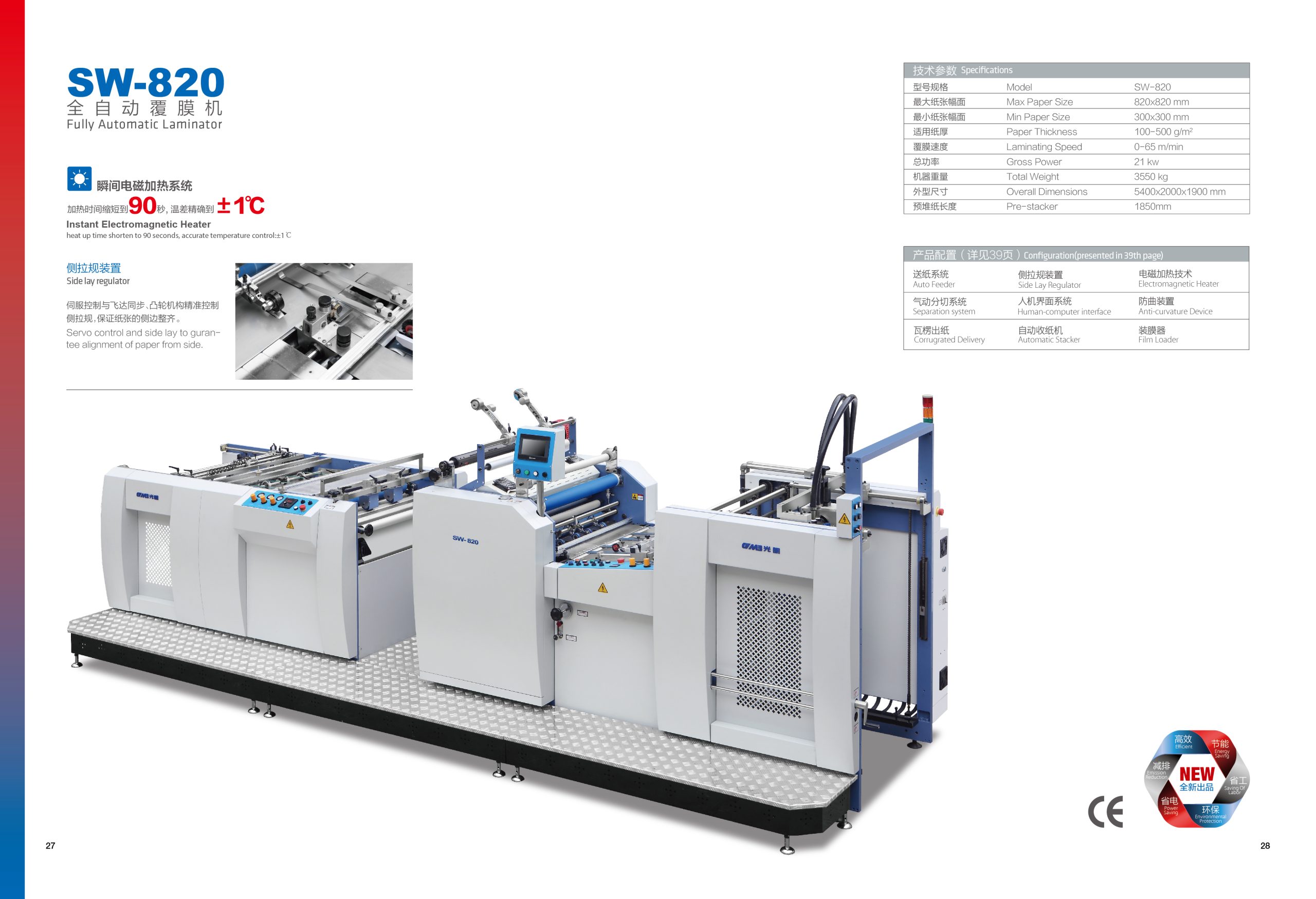

Automatic roll laminator with electromagnetic heating SW-820
Request a quote
"*" indicates required fields
Description
Configuration
- InstantEN – fast electromagnetic heater that shortens the roller heating time to 90 seconds with precise temperature control of +_1 C
- The laminating paper loading plate can be lowered to floor level, making it easier to load paper.
- Paper suction system guarantees stable and smooth paper feeding into the laminator for lamination
- Larger chrome roller equipped with the latest electromagnet heating technology, which ensures high quality lamination.
- The structural design of the separation system makes operation and maintenance easy.
- New design and larger automatic paper feeder with double layer of paper tapping
Technical characteristics:
| model | SW-820 |
| max paper width | 850 x 820 mm |
| min paper width | 300 x 300 mm |
| max lamination speed | 0- 65 m/min |
| max paper thickness | 100 – 500 g/m2 |
| lamination temperature | 80 – 110 C |
| power | 21 KW |
| power supply | 3 x 380 V, 50 HZ |
| weight | 3550 kg |
| dimensions | (5400 х 2000 х 1900) mm |
