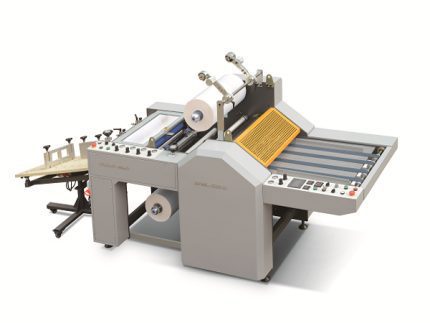

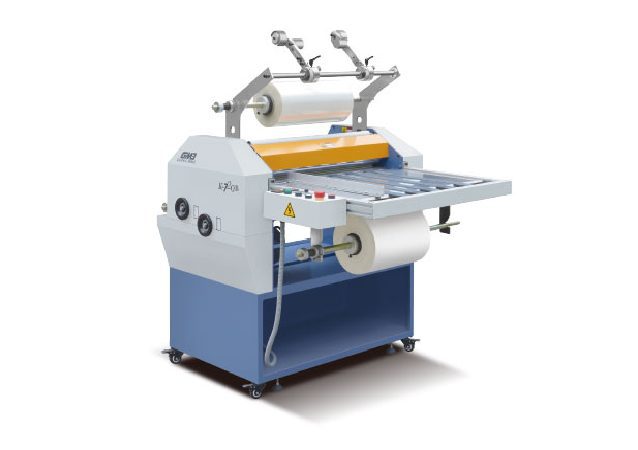

Manual mechanical roll laminators for double-sided lamination KDFM – 540B/720B/900B
Request a quote
"*" indicates required fields
Description
Laminators K-540V/720V/900V are simple machines with a new design. Their main features are the advanced design, the elegant style, the compact structure, the easy handling, etc.
These machines are an ideal choice for double-sided lamination of digital print, offset print, laser print, inkjet print, laminating any graphic material, laminating all types of office documents, etc. They use thermal PET or BOPP film and can laminate both single-sided and double-sided.
Technical characteristics
| model | K-540V | K-720В | K-900V |
| max. laminating width | 500 mm | 720 mm | 900 mm |
| lamination speed | 0-15 m/min | 0-15 m/min | 0-15 m/min |
| lamination thickness | 105-500 gsm | 105-500 gsm | 105-500 gsm |
| power | 3 KW | 3,2 KW | 3,5 KW |
| power supply | 380 V | 380 V | 380 V |
| weight of the machines | 230 kg | 250 kg | 270 kg |
| machine dimensions | 1270x970x1400 mm | 1270x1150x1400 mm | 1270x1300x1400 mm |
Additional information
| KDFM | 540B, 720B, 900B |
|---|
